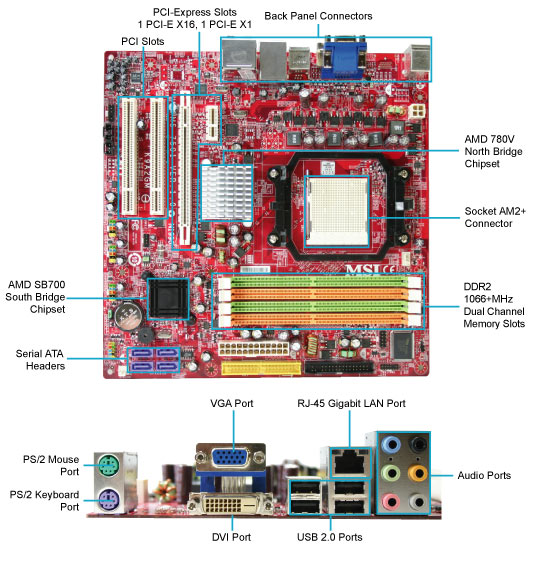

K9A2VM-FD

CPU

FSB

Chipset
AMD® 780V and SB700 Chipet     Main Memory

Slots

On-Board IDE

On-Board SATA

Audio

LAN

Internal I/O Connectors

Back Panel I/O Ports

$109

K9N6PGM2-V2

FSB

Slots

On-Board SATA

RAID Function

Audio

LAN

Back Panel I/O Ports

$89

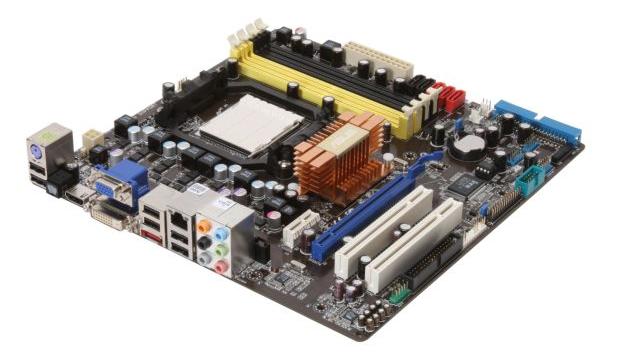

M3N78-VM

- Model Brand ASUS Model M3N78-VM Supported CPU CPU Socket Type AM2+/AM2 CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 FSB 2600MHz Hyper Transport (5200 MT/s)

- Chipsets North Bridge NVIDIA GeForce 8200

- Memory Number of Memory Slots 4×240pin Memory Standard DDR2 1066 / 800
*DDR2 1066 is supported by AM2+ CPU only Maximum

Memory Supported 8GB Channel Supported Dual Channel Expansion Slots PCI Express x16

1 PCI Express x1 1 PCI Slots 2 Storage Devices PATA 1 x ATA100 2 Dev. Max SATA 3Gb/s 5 SATA RAID 0/1/0+1/5/JBOD

- Onboard Video Onboard Video Chipset NVIDIA GeForce 8 series

- Onboard Audio Audio Chipset VIA VT1708B Audio Channels 8 Channels

- Onboard LAN LAN Chipset Realtek 8211CL Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 Video Ports D-Sub + DVI HDMI 1 x HDMI USB 6 x USB 2.0 eSATA 1 x eSATA 3Gb/s S/PDIF Out 1 x Optical Audio Ports 6 Ports Onboard USB Onboard USB 3 x USB connector (6 ports) Physical Spec Form Factor Micro ATX Dimensions 9.6" x 9.6" Power Pin 24 Pin Features Features Express Gate Hybrid SLI
Astounding Blue-Ray and HD DVD Playback through HDMI
Direct X 10 Support for Windows Vista 3D Experience
ESD Guards Packaging Package Contents M3N78-VM
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable

$129

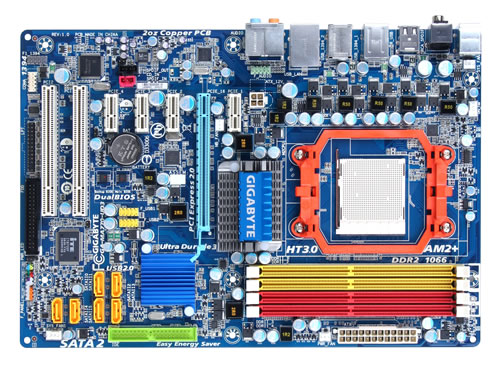

MA770-UD3

CPU

Support for Socket AM2+/ AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor

Hyper Transport Bus

5200/2000 MT/s

Chipset

North Bridge: AMD 770

South Bridge: AMD SB700

Memory

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 1200(Note 2)/1066/800/667 MHz memory modules

Support ECC memory (Note 3)

Audio

Realtek ALC888 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN

Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIE_16) (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)

4 x PCI Express x1 slots

2 x PCI slots

Storage InterfaceSouth Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1 and RAID 10

iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394T.I. TSB43AB23 chip


Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)

USBIntegrated in the South Bridge


Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x North Bridge fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x power LED header

1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

1 x serial port

8 x USB 2.0/1.1 ports

2 x IEEE 1394a ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

iTE IT8720 chip

H/W MonitoringSystem voltage detection


CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU fan speed control (Note 4)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS

Support for Download Center

Support for Q-Flash

Support for EasyTune (Note 5)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Support for Easy Energy Saver (Note 6)

Bundle Software

Norton Internet Security (OEM version)

Operating System

Support for Microsoft^® Windows Vista/XP

Form Factor

ATX Form Factor; 30.5cm x 21.0cm

Note(Note 1) Due to Windows^® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1066 MHz memory speed is supported depends on the CPU being used.
(Note 3) Use of a CPU that supports ECC is required if you wish to install ECC memory.
(Note 4) Whether the CPU/ system fan speed control function is supported will depend on the CPU/ system cooler you installed.
(Note 5) Available functions in Easytune may differ by motherboard model.
(Note 6) Due to the hardware limitation, you must install the AMD AM2+ Phenom™ series CPU to enable support for Easy Energy Saver.Remark

$149
